CAMEX could achieve more accurate integration and annotation performance in both relatives and distant species
This tutorial demonstrates that CAMEX could achieve more accurate integration and annotation performance in both relatives and distant species.
Here, we use collected scRNA-seq data from four species: adult human visual cortex, frontal cortex, and cerebellum, mouse neocortex, as well as lizard and turtle pallium. Processed h5ad files can be downloaded from https://drive.google.com/drive/folders/1rwdjEvWFEFw82a0x2JzMi2jXICbUc5eb?usp=sharing
[1]:
import warnings
warnings.filterwarnings("ignore")
[3]:
import os
import time
import torch
import shutil
import warnings
import argparse
import importlib
import scanpy as sc
import pandas as pd
import numpy as mp
from CAMEX.base import Dataset
from CAMEX.trainer import Trainer
[4]:
from params import PARAMS
[5]:
t1 = time.time()
make log dir
[6]:
time_start = time.strftime("%Y-%m-%d-%H-%M-%S")
log_path = f'./log/{time_start}/'
for k, v in PARAMS.items():
v['time_start'] = time_start
v['log_path'] = log_path
print(log_path)
./log/2025-06-14-10-39-23/
[7]:
os.makedirs(log_path, exist_ok=True)
shutil.copy('params.py', log_path + 'params_current.py')
print(f'time: {time_start}')
time: 2025-06-14-10-39-23
preprocess scRNA_seq data to construct a heterogeneous graph of cells and genes
[8]:
# —————————————————————————————————— 1 preprocess
print('start preprocess')
dataset = Dataset(**PARAMS['preprocess'])
# torch.save(dataset, log_path + 'dataset_preprocessed.pt')
# dataset = torch.load(f'{args.path}/log/2023-06-06-09-02-45/dataset_preprocessed.pt')
adata_CAMEX = dataset.adata_whole
dgl_data = dataset.dgl_data
start preprocess
raw-brain-human-Lake: reference raw-brain-mouse-Chen: query raw-brain-lizard-Tosches: query raw-brain-turtle-Tosches: query
excitatory neuron 14747.0 906.0 1910.0 7151.0
inhibitory neuron 6808.0 1392.0 242.0 1490.0
oligodendrocyte 4369.0 3724.0 551.0 155.0
cerebellar granule cell 3298.0 NaN NaN NaN
astrocyte 2524.0 1757.0 520.0 6514.0
oligodendrocyte precursor cell 1358.0 1792.0 398.0 1862.0
Purkinje cell 1001.0 NaN NaN NaN
microglial cell 756.0 724.0 278.0 589.0
endothelial cell 219.0 1197.0 NaN NaN
brain pericyte 209.0 NaN NaN 114.0
ependymal cell NaN 413.0 NaN NaN
macrophage NaN 167.0 NaN NaN
neural progenitor cell NaN NaN 133.0 717.0
[9]:
print('start train')
trainer = Trainer(adata_CAMEX, dgl_data, **PARAMS['train'])
start train
integration
[10]:
trainer.integration()
--------------------------------------------- integration ---------------------------------------------
epoch: 0, loss: 88.19321090792432
epoch: 1, loss: 26.90171910509651
epoch: 2, loss: 26.61919125215507
epoch: 3, loss: 26.456716372642987
epoch: 4, loss: 26.36408836458936
epoch: 5, loss: 26.273979987627193
epoch: 6, loss: 26.22034063456971
epoch: 7, loss: 26.136304831799166
epoch: 8, loss: 26.09897893740807
epoch: 9, loss: 26.08717859527211
annotation
[11]:
trainer.annotation()
--------------------------------------------- annotation ---------------------------------------------
epoch: 0, loss: 88.01263552904129
train_acc: {'raw-brain-human-Lakecell_acc': 0.9388}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.933, 'raw-brain-mouse-Chencell_acc': 0.6207, 'raw-brain-turtle-Toschescell_acc': 0.9275}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6674, 'raw-brain-lizard-Toschescell_ami': 0.7326, 'raw-brain-mouse-Chencell_ami': 0.5929, 'raw-brain-turtle-Toschescell_ami': 0.6558}, best_epoch: 0
epoch: 1, loss: 55.156198382377625
train_acc: {'raw-brain-human-Lakecell_acc': 0.9442}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9368, 'raw-brain-mouse-Chencell_acc': 0.7285, 'raw-brain-turtle-Toschescell_acc': 0.9235}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6667, 'raw-brain-lizard-Toschescell_ami': 0.7578, 'raw-brain-mouse-Chencell_ami': 0.6837, 'raw-brain-turtle-Toschescell_ami': 0.6535}, best_epoch: 1
epoch: 2, loss: 53.2356573343277
train_acc: {'raw-brain-human-Lakecell_acc': 0.9434}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9301, 'raw-brain-mouse-Chencell_acc': 0.7244, 'raw-brain-turtle-Toschescell_acc': 0.9161}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6631, 'raw-brain-lizard-Toschescell_ami': 0.7533, 'raw-brain-mouse-Chencell_ami': 0.6903, 'raw-brain-turtle-Toschescell_ami': 0.6396}, best_epoch: 1
epoch: 3, loss: 52.655654072761536
train_acc: {'raw-brain-human-Lakecell_acc': 0.9479}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9201, 'raw-brain-mouse-Chencell_acc': 0.7352, 'raw-brain-turtle-Toschescell_acc': 0.9208}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6667, 'raw-brain-lizard-Toschescell_ami': 0.7362, 'raw-brain-mouse-Chencell_ami': 0.6919, 'raw-brain-turtle-Toschescell_ami': 0.6366}, best_epoch: 1
epoch: 4, loss: 53.30202889442444
train_acc: {'raw-brain-human-Lakecell_acc': 0.9453}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9263, 'raw-brain-mouse-Chencell_acc': 0.737, 'raw-brain-turtle-Toschescell_acc': 0.9172}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6666, 'raw-brain-lizard-Toschescell_ami': 0.7458, 'raw-brain-mouse-Chencell_ami': 0.7004, 'raw-brain-turtle-Toschescell_ami': 0.644}, best_epoch: 3
epoch: 5, loss: 52.66183912754059
train_acc: {'raw-brain-human-Lakecell_acc': 0.9491}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9209, 'raw-brain-mouse-Chencell_acc': 0.7464, 'raw-brain-turtle-Toschescell_acc': 0.9215}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6694, 'raw-brain-lizard-Toschescell_ami': 0.7351, 'raw-brain-mouse-Chencell_ami': 0.7069, 'raw-brain-turtle-Toschescell_ami': 0.6424}, best_epoch: 3
epoch: 6, loss: 53.20870327949524
train_acc: {'raw-brain-human-Lakecell_acc': 0.95}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9221, 'raw-brain-mouse-Chencell_acc': 0.7778, 'raw-brain-turtle-Toschescell_acc': 0.9246}, train_ami:{'raw-brain-human-Lakecell_ami': 0.671, 'raw-brain-lizard-Toschescell_ami': 0.7481, 'raw-brain-mouse-Chencell_ami': 0.7196, 'raw-brain-turtle-Toschescell_ami': 0.6532}, best_epoch: 6
epoch: 7, loss: 52.54552209377289
train_acc: {'raw-brain-human-Lakecell_acc': 0.9479}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9244, 'raw-brain-mouse-Chencell_acc': 0.7353, 'raw-brain-turtle-Toschescell_acc': 0.9203}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6663, 'raw-brain-lizard-Toschescell_ami': 0.742, 'raw-brain-mouse-Chencell_ami': 0.6937, 'raw-brain-turtle-Toschescell_ami': 0.637}, best_epoch: 6
epoch: 8, loss: 52.27011561393738
train_acc: {'raw-brain-human-Lakecell_acc': 0.946}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9164, 'raw-brain-mouse-Chencell_acc': 0.6963, 'raw-brain-turtle-Toschescell_acc': 0.9093}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6634, 'raw-brain-lizard-Toschescell_ami': 0.7229, 'raw-brain-mouse-Chencell_ami': 0.6655, 'raw-brain-turtle-Toschescell_ami': 0.6217}, best_epoch: 6
epoch: 9, loss: 52.543911933898926
train_acc: {'raw-brain-human-Lakecell_acc': 0.9468}, test_acc: {'raw-brain-lizard-Toschescell_acc': 0.9216, 'raw-brain-mouse-Chencell_acc': 0.7345, 'raw-brain-turtle-Toschescell_acc': 0.9213}, train_ami:{'raw-brain-human-Lakecell_ami': 0.6657, 'raw-brain-lizard-Toschescell_ami': 0.7396, 'raw-brain-mouse-Chencell_ami': 0.701, 'raw-brain-turtle-Toschescell_ami': 0.6424}, best_epoch: 8
[12]:
adata_CAMEX.write_h5ad(log_path + 'adata_CAMEX.h5ad', compression='gzip')
[13]:
t2 = time.time()
[14]:
print(f'time usage: {round(t2-t1)} seconds')
time usage: 1841 seconds
analysis
[15]:
log_path
[15]:
'./log/2025-06-14-10-39-23/'
[16]:
adata_CAMEX = sc.read_h5ad(log_path + 'adata_CAMEX.h5ad')
adata_CAMEX
[16]:
AnnData object with n_obs × n_vars = 69985 × 2000
obs: 'cell_ontology_class', 'cell_ontology_id', 'cell_type1', 'dataset_name', 'donor', 'organ', 'organism', 'platform', 'region', 'tSNE1', 'tSNE2', 'batch', 'n_genes_by_counts', 'total_counts', 'cell_ontology_class_num', 'cell_class', 'cell_class_num'
var: 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection', 'mean', 'std'
uns: 'cell_type', 'data_order', 'dataset_description', 'dataset_type', 'hvg', 'log1p', 'neighbors', 'pca'
obsm: 'X_CAMEX_Annotation', 'X_CAMEX_Annotation_eval', 'X_CAMEX_Integration', 'X_pca', 'cell_train_class'
varm: 'PCs'
layers: 'counts'
obsp: 'connectivities', 'distances'
integration
[47]:
adata_CAMEX.obs.head(5)
[47]:
| cell_ontology_class | cell_ontology_id | cell_type1 | dataset_name | donor | organ | organism | platform | region | tSNE1 | tSNE2 | batch | n_genes_by_counts | total_counts | cell_ontology_class_num | cell_class | cell_class_num | cell_type_pred | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| index | ||||||||||||||||||
| Gran_cbm1_TTAATCAGTCGC | cerebellar granule cell | CL:0001031 | Gran | Lake_2018 | 1 | Brain | Homo sapiens | snDrop-seq | cbm | -26.725456 | -30.189707 | raw-brain-human-Lake | 708 | 1090.0 | 3 | cerebellar granule cell | 3 | cerebellar granule cell |
| Gran_cbm1_ACAACGACATCC | cerebellar granule cell | CL:0001031 | Gran | Lake_2018 | 1 | Brain | Homo sapiens | snDrop-seq | cbm | -31.022097 | -22.272980 | raw-brain-human-Lake | 646 | 915.0 | 3 | cerebellar granule cell | 3 | cerebellar granule cell |
| Gran_cbm1_TATGTCTATATG | cerebellar granule cell | CL:0001031 | Gran | Lake_2018 | 1 | Brain | Homo sapiens | snDrop-seq | cbm | -35.684959 | -24.031462 | raw-brain-human-Lake | 701 | 1053.0 | 3 | cerebellar granule cell | 3 | cerebellar granule cell |
| Gran_cbm1_TAATGGAAAATA | cerebellar granule cell | CL:0001031 | Gran | Lake_2018 | 1 | Brain | Homo sapiens | snDrop-seq | cbm | -25.886816 | -33.706535 | raw-brain-human-Lake | 715 | 1115.0 | 3 | cerebellar granule cell | 3 | cerebellar granule cell |
| Gran_cbm1_CTGGACTACAGC | cerebellar granule cell | CL:0001031 | Gran | Lake_2018 | 1 | Brain | Homo sapiens | snDrop-seq | cbm | -25.068712 | -36.672504 | raw-brain-human-Lake | 651 | 960.0 | 3 | cerebellar granule cell | 3 | cerebellar granule cell |
[48]:
adata_CAMEX.obsm['X_CAMEX_Integration'].shape
[48]:
(69985, 128)
[49]:
sc.pp.neighbors(adata_CAMEX, use_rep='X_CAMEX_Integration')
[50]:
sc.tl.umap(adata_CAMEX)
[51]:
palette_batch = {'raw-brain-human-Lake': '#FB7800', 'raw-brain-mouse-Chen': '#D62728',
'raw-brain-lizard-Tosches': '#31C4C9', 'raw-brain-turtle-Tosches': '#894EA1'}
[52]:
palette_cell = {'cerebellar granule cell': '#D1352B',
'ependymal cell': '#9B5B33',
'endothelial cell': '#EE934E',
'brain pericyte': '#FFFF32',
'astrocyte': '#CCCC33',
'oligodendrocyte': '#BBDD78',
'oligodendrocyte precursor cell': '#7DBFA7',
'macrophage': '#3C77AF',
'excitatory neuron': '#AECDE1',
'inhibitory neuron': '#F5CFE4',
'neural progenitor cell': '#A71AB9',
'microglial cell': '#B383B9',
'Purkinje cell': '#D67475',}
[53]:

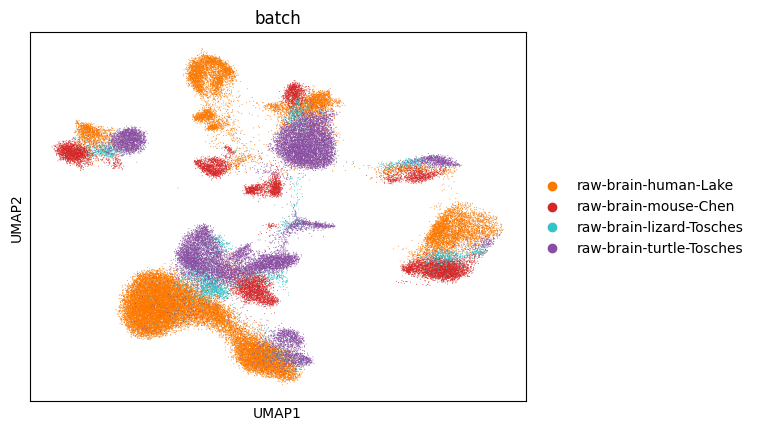

sc.pl.umap(adata_CAMEX, color=['batch'], wspace=0.6, palette=palette_batch)
[54]:

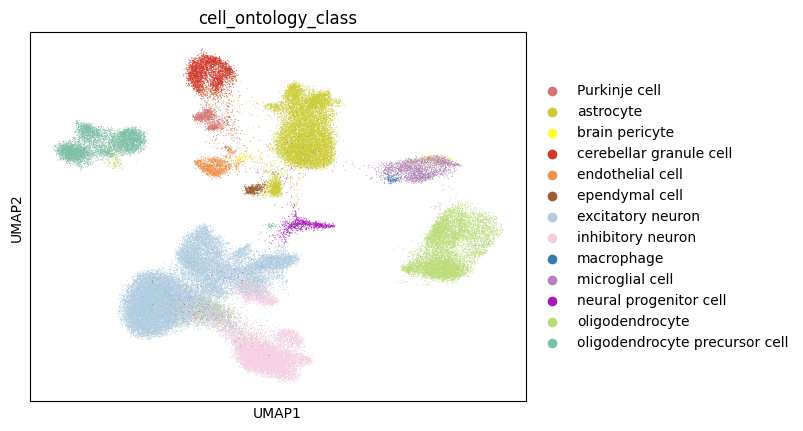

sc.pl.umap(adata_CAMEX, color=['cell_ontology_class'], wspace=0.6, palette=palette_cell)
[ ]:
annotation
[55]:
adata_CAMEX
[55]:
AnnData object with n_obs × n_vars = 69985 × 2000
obs: 'cell_ontology_class', 'cell_ontology_id', 'cell_type1', 'dataset_name', 'donor', 'organ', 'organism', 'platform', 'region', 'tSNE1', 'tSNE2', 'batch', 'n_genes_by_counts', 'total_counts', 'cell_ontology_class_num', 'cell_class', 'cell_class_num', 'cell_type_pred'
var: 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection', 'mean', 'std'
uns: 'cell_type', 'data_order', 'dataset_description', 'dataset_type', 'hvg', 'log1p', 'neighbors', 'pca', 'umap', 'batch_colors', 'cell_ontology_class_colors', 'cell_type_pred_colors'
obsm: 'X_CAMEX_Annotation', 'X_CAMEX_Annotation_eval', 'X_CAMEX_Integration', 'X_pca', 'cell_train_class', 'X_umap'
varm: 'PCs'
layers: 'counts'
obsp: 'connectivities', 'distances'
adata_CAMEX.uns[‘cell_type’] is the dictionary of the correspondence between cell types and numerical codes
[56]:
adata_CAMEX.uns['cell_type']
[56]:
{'Purkinje cell': 6,
'astrocyte': 4,
'brain pericyte': 9,
'cerebellar granule cell': 3,
'endothelial cell': 8,
'ependymal cell': 11,
'excitatory neuron': 0,
'inhibitory neuron': 1,
'macrophage': 12,
'microglial cell': 7,
'neural progenitor cell': 13,
'oligodendrocyte': 2,
'oligodendrocyte precursor cell': 5,
'unknown': 10}
[57]:
cell_type_d = {v: k for k, v in adata_CAMEX.uns['cell_type'].items()}
cell_type_d
[57]:
{6: 'Purkinje cell',
4: 'astrocyte',
9: 'brain pericyte',
3: 'cerebellar granule cell',
8: 'endothelial cell',
11: 'ependymal cell',
0: 'excitatory neuron',
1: 'inhibitory neuron',
12: 'macrophage',
7: 'microglial cell',
13: 'neural progenitor cell',
2: 'oligodendrocyte',
5: 'oligodendrocyte precursor cell',
10: 'unknown'}
[ ]:
import torch
import numpy as np
[58]:
y_true = adata_CAMEX.obs['cell_ontology_class_num'].to_numpy().astype(np.int) # numerical codes of manually annotated cell types (ground truth)
y_prob = torch.nn.Softmax(dim=-1)(torch.tensor(adata_CAMEX.obsm['cell_train_class'])).numpy() # apply softmax to model outputs (logits) to obtain probability distributions
y_pred = np.argmax(y_prob, axis=-1).astype(np.int) # get the predicted class index with the highest probability
adata_CAMEX.obs.loc[:, 'cell_type_pred'] = [cell_type_d[item] for item in y_pred] # map predicted class indices to cell type names and store them in adata.obs
adata_CAMEX
[58]:
AnnData object with n_obs × n_vars = 69985 × 2000
obs: 'cell_ontology_class', 'cell_ontology_id', 'cell_type1', 'dataset_name', 'donor', 'organ', 'organism', 'platform', 'region', 'tSNE1', 'tSNE2', 'batch', 'n_genes_by_counts', 'total_counts', 'cell_ontology_class_num', 'cell_class', 'cell_class_num', 'cell_type_pred'
var: 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection', 'mean', 'std'
uns: 'cell_type', 'data_order', 'dataset_description', 'dataset_type', 'hvg', 'log1p', 'neighbors', 'pca', 'umap', 'batch_colors', 'cell_ontology_class_colors', 'cell_type_pred_colors'
obsm: 'X_CAMEX_Annotation', 'X_CAMEX_Annotation_eval', 'X_CAMEX_Integration', 'X_pca', 'cell_train_class', 'X_umap'
varm: 'PCs'
layers: 'counts'
obsp: 'connectivities', 'distances'
[61]:
sc.pp.neighbors(adata_CAMEX, use_rep='X_CAMEX_Annotation')
[62]:
sc.tl.umap(adata_CAMEX)

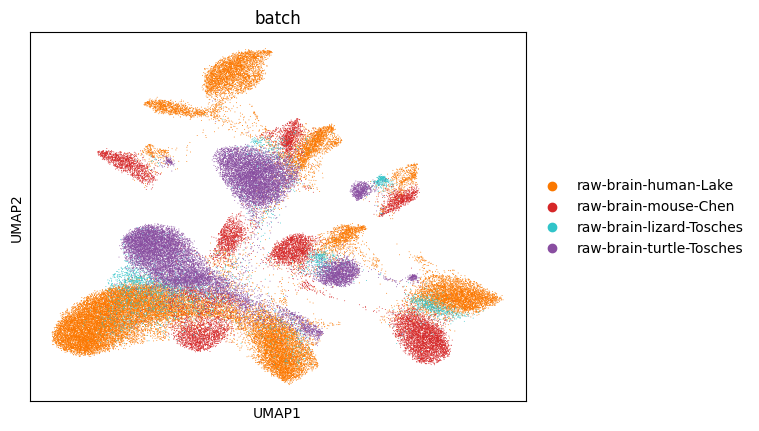

Visualize batch key in UMAP plot
[63]:
sc.pl.umap(adata_CAMEX, color=['batch'], wspace=0.6, palette=palette_batch)

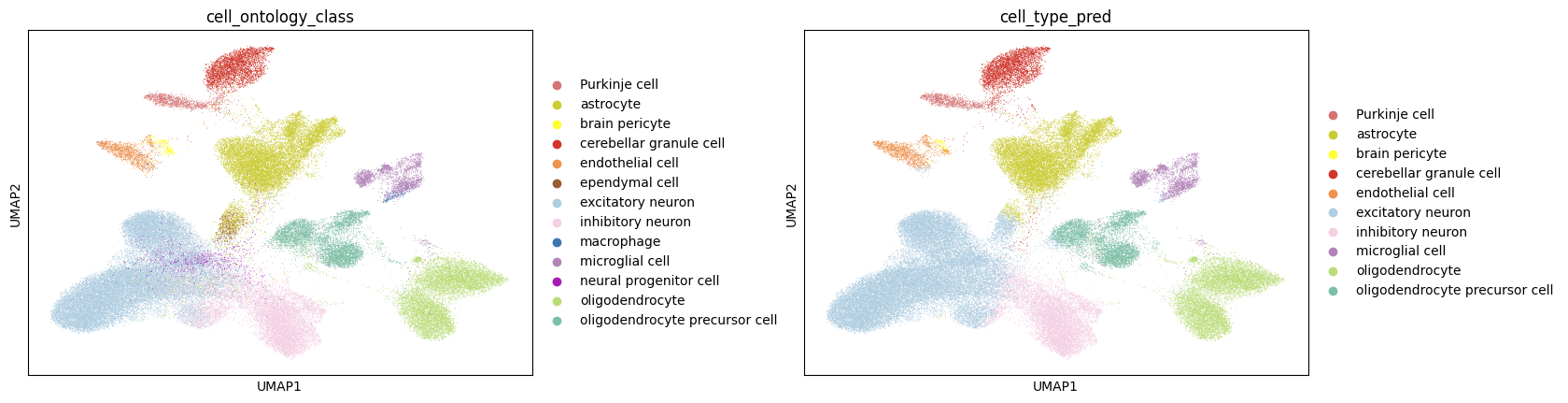

Visualize mannual annotation and CAMEX cell type prediction key in UMAP plot
[64]:
sc.pl.umap(adata_CAMEX, color=['cell_ontology_class', 'cell_type_pred'], wspace=0.4, palette=palette_cell)
[ ]:
